Zabbix 监控docker容器

 ·  ☕ 2 min read

更新记录

时间 内容
2021-03-15 初稿

软件版本

soft Version
zabbix server 4.0.21
zabbix agent 4.0.29
ansible 2.9.17

一、Zabbix agent

1.1、zabbix agent 配置

➜  vim /etc/zabbix/zabbix_agentd.d/docker.conf
UserParameter=docker.discovery,python3 /etc/zabbix/scripts/docker_monitor.py
UserParameter=docker.[*],python3 /etc/zabbix/scripts/docker_monitor.py $1 $2

1.2、python 监控脚本

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
  vim /etc/zabbix/scripts/docker_monitor.py
#!/usr/bin/python
"""
Created by PyCharm.
File:               OpsNotes:docker_monitor.py
User:               miaocunfa
Create Date:        2021-03-12
Create Time:        17:10
Update Date:        2021-03-12
Update Time:        17:10
Version:            v0.0.1
"""

import sys
import os
import json

# 返回容器列表
def discover():
    d = {}
    d['data'] = []
    with os.popen("docker ps -a --format {{.Names}}") as pipe:
        for line in pipe:
            info = {}
            info['{#CONTAINERNAME}'] = line.replace("\n","")
            d['data'].append(info)
    print(json.dumps(d))


def status(name,action):
    # 判断容器运行状态
    if action == "ping":
        cmd = 'docker inspect --format="{{.State.Running}}" %s' %name
        result = os.popen(cmd).read().replace("\n","")
        if result == "true":
            print(1)
        else:
            print(0)
    # 网络收包
    elif action == "network_rx_bytes":
        cmd = """docker exec %s cat /proc/net/dev|sed -n 3p|awk '{print $2,$10}'""" %name
        result = os.popen(cmd).read().split()[0]
        print(result)
    # 网络发包
    elif action == "network_tx_bytes":
        cmd = """docker exec %s cat /proc/net/dev|sed -n 3p|awk '{print $2,$10}'""" %name
        result = os.popen(cmd).read().split()[1]
        print(result)
    # 使用 docker stats 命令获得容器指标
    else:
        cmd = 'docker stats %s --no-stream --format "{{.%s}}"' % (name,action)
        result = os.popen(cmd).read().replace("\n","")
        if "%" in result:
            print(float(result.replace("%","")))
        else:
            print(result)


if __name__ == '__main__':
    try:
        name, action = sys.argv[1], sys.argv[2]
        status(name,action)
    except IndexError:
        discover()

1.3、推送到服务器

1
2
3
➜  ansible docker -m copy -a "src=/root/ansible/docker.conf dest=/etc/zabbix/zabbix_agentd.d/"
➜  ansible docker -m copy -a "src=/root/ansible/docker_monitor.py dest=/etc/zabbix/scripts/"
➜  ansible docker -m shell -a "systemctl restart zabbix-agent"

二、Zabbix Server

打开链接,导入 此模板

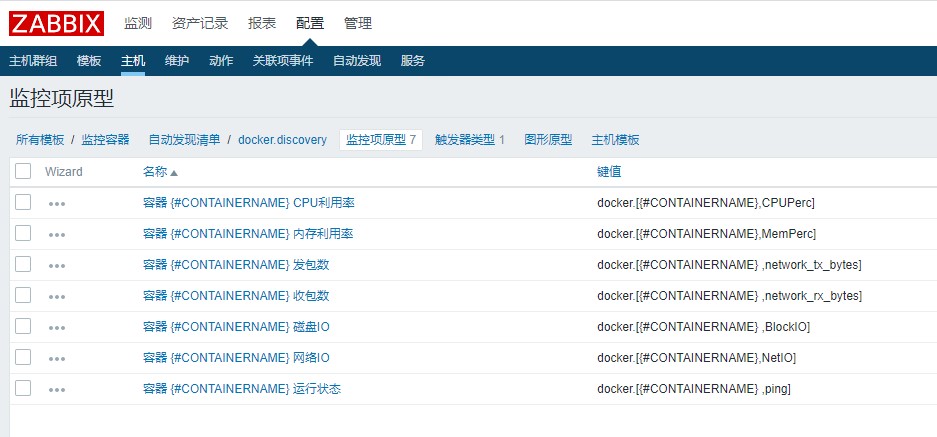

点击 ‘配置’ –> ‘模板’ –> 找到对应模板 –> ‘自动发现’ –> ‘监控项原型’

docker 自动发现规则

三、问题解决

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
# 使用 docker.discovery 获取 Docker 列表
# zabbix 用户无法访问 /var/run/docker.sock
➜  zabbix_get -s 192.168.189.180 -p 10050 -k docker.discovery
Got permission denied while trying to connect to the Docker daemon socket at unix:///var/run/docker.sock: Get http://%2Fvar%2Frun%2Fdocker.sock/v1.40/containers/json?all=1: dial unix /var/run/docker.sock: connect: permission denied

# 查看 docker.sock 的权限
# docker.sock 文件 属主root、属组docker
➜  ansible docker -m shell -a "ls -rtl /var/run/docker.sock"
[WARNING]: Invalid characters were found in group names but not replaced, use -vvvv to see details
192.168.189.175 | CHANGED | rc=0 >>
srw-rw---- 1 root docker 0 Oct 10  2019 /var/run/docker.sock
192.168.189.177 | CHANGED | rc=0 >>
srw-rw---- 1 root docker 0 Oct 10  2019 /var/run/docker.sock
192.168.189.178 | CHANGED | rc=0 >>
srw-rw---- 1 root docker 0 Oct 10  2019 /var/run/docker.sock
192.168.189.171 | CHANGED | rc=0 >>
srw-rw---- 1 root docker 0 Oct 10  2019 /var/run/docker.sock
192.168.189.176 | CHANGED | rc=0 >>
srw-rw---- 1 root docker 0 Oct 10  2019 /var/run/docker.sock
192.168.189.180 | CHANGED | rc=0 >>
srwxr-xr-x 1 root docker 0 Oct 10  2019 /var/run/docker.sock

# 将 zabbix 用户加入 docker组
# 重启 zabbix-agent 服务以生效
➜  ansible docker -m shell -a "usermod -a -G docker zabbix"
➜  ansible docker -m shell -a "systemctl restart zabbix-agent"

# 获取到 Docker 列表
➜  zabbix_get -s 192.168.189.180 -p 10050 -k docker.discovery
{"data": [{"{#CONTAINERNAME}": "V_Prod_Bidding_Two"}, {"{#CONTAINERNAME}": "V_Prod_Machine_Two"}, {"{#CONTAINERNAME}": "V_Prod_Order_Two"}, {"{#CONTAINERNAME}": "V_Prod_Project_One"}, {"{#CONTAINERNAME}": "V_Prod_Three_One"}, {"{#CONTAINERNAME}": "V_Prod_School_One"}]}

四、验证数据

检测 –> 最新数据 –> 应用集选 ‘docker_monitor’

docker数据

参考文档:
[1] zabbix自发现实时监控docker容器及容器中各个服务的状态线上业务展示
[2] zabbix监控docker容器状态
