更新记录
软件版本
soft |
Version |
zabbix server |
4.0.21 |
zabbix agent |
4.0.29 |
引言
现在越来越多的浏览器要求你使用SSL证书,google浏览器直接不允许访问非SSL证书认证的网站,所以现在下公司SSL证书越来越多,这就带来了一个问题,如果SSL证书过期了,会非常影响用户体验。
所以结合公司正在使用的Zabbix监控告警平台,提前告知SSL证书即将过期,将对管理SSL证书非常有效。
Zabbix Agent
自动发现脚本
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
➜ vim /etc/zabbix/scripts/ssl_discover.py
#!/usr/bin/python
"""
Created by Vscode.
File: OpsNotes:ssl_discover.py
User: miaocunfa
Create Date: 2021-04-02
Create Time: 16:08
Update Date: 2021-04-02
Update Time: 17:04
Version: v0.0.3
"""
import os
import json
# 返回证书列表
def discover():
d = {}
d['data'] = []
with os.popen("cd /usr/local/nginx/conf/https/; ls *.crt") as pipe:
for line in pipe:
info = {}
info['{#CRTFILE}'] = line.replace("\n","")
d['data'].append(info)
print(json.dumps(d))
discover()
# 执行脚本 返回如下json
➜ python3 ssl_discover.py
{"data": [{"{#CRTFILE}": "1_api.gongjiangren.net_bundle.crt"}, {"{#CRTFILE}": "1_api.qixinbao.net.cn_bundle.crt"}, {"{#CRTFILE}": "1_api.shengshui.com_bundle.crt"}, {"{#CRTFILE}": "1_api.tt321.net_bundle.crt"}, {"{#CRTFILE}": "1_fleetin.gongjiangren.net_bundle.crt"}, {"{#CRTFILE}": "1_front.gongjiangren.net_bundle.crt"}, {"{#CRTFILE}": "1_market.gongjiangren.net_bundle.crt"}, {"{#CRTFILE}": "1_website.page.gongjiangren.net_bundle.crt"}, {"{#CRTFILE}": "1_www.gongjiangren.net_bundle.crt"}, {"{#CRTFILE}": "1_www.qixinbao.net.cn_bundle.crt"}, {"{#CRTFILE}": "1_www.shengshui.com_bundle.crt"}, {"{#CRTFILE}": "1_yqfk.gongjiangren.net_bundle.crt"}]}
|
监控脚本
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
|
➜ vim /etc/zabbix/scripts/ssl_check.sh
#!/bin/bash
# Describe: ssl_check.sh
# Create Date: 2021-04-02
# Create Time: 15:48
# Update Date: 2021-04-02
# Update Time: 16:59
# Author: MiaoCunFa
# Version: v0.0.4
#===================================================================
function Usage(){
echo "Usage: ssl_check [crtfile] [alertday]"
}
crtfile=$1
alert_date=$2
crtdir="/usr/local/nginx/conf/https"
if [ "$1" == "" ];
then
Usage
exit 0
fi
if [ "$2" == "" ];
then
Usage
exit 0
fi
#===================================================================
cd $crtdir
# 过期时间 && 过期时间时间戳
expire_date=$(openssl x509 -in $crtfile -noout -text | grep "Not After" | awk -F " : " '{print $2}')
expire_stamp=$(date -d "$expire_date" +%s)
# 提醒日期 && 提醒日期时间戳
alert_stamp=$(($expire_stamp - $alert_date * 86400))
# 当前日期 && 当前日期时间戳
curdate_stamp=$(date +%s)
#curdate_stamp=$(date --date 20210823 +%s)
# 判断当期日期与提醒日期
if [ $curdate_stamp -ge $alert_stamp ]; then
echo 1
else
echo 0
fi
|
配置文件
1
2
3
|
➜ vim /etc/zabbix/zabbix_agentd.d/ssl.conf
UserParameter=ssl.discovery,python3 /etc/zabbix/scripts/ssl_discover.py
UserParameter=ssl.check[*],/bin/bash /etc/zabbix/scripts/ssl_check.sh $1 $2
|
执行权限 && agent重启
1
2
3
4
5
|
➜ cd /etc/zabbix/scripts
➜ chown -R zabbix:zabbix ssl*
➜ chmod u+x ssl*
➜ systemctl restart zabbix-agent
|
Zabbix UI

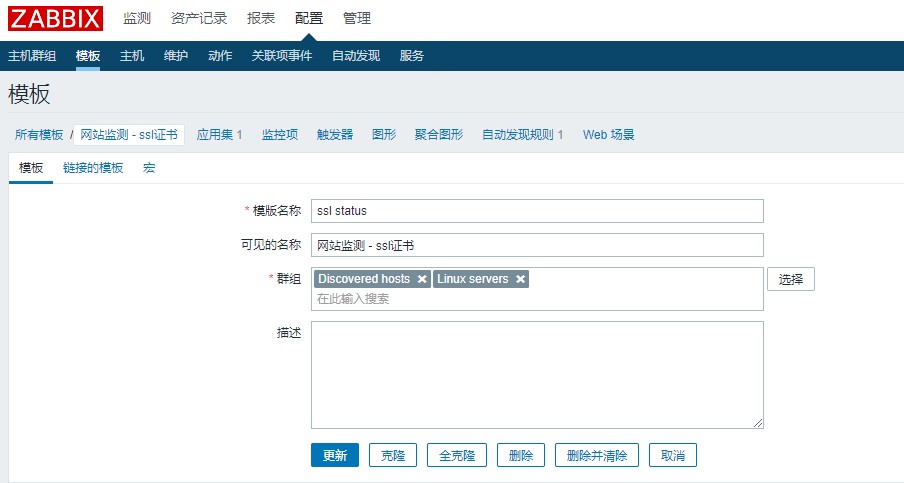

1、创建模板
点击 ‘配置’ –> ‘模板’ –> ‘创建模板’

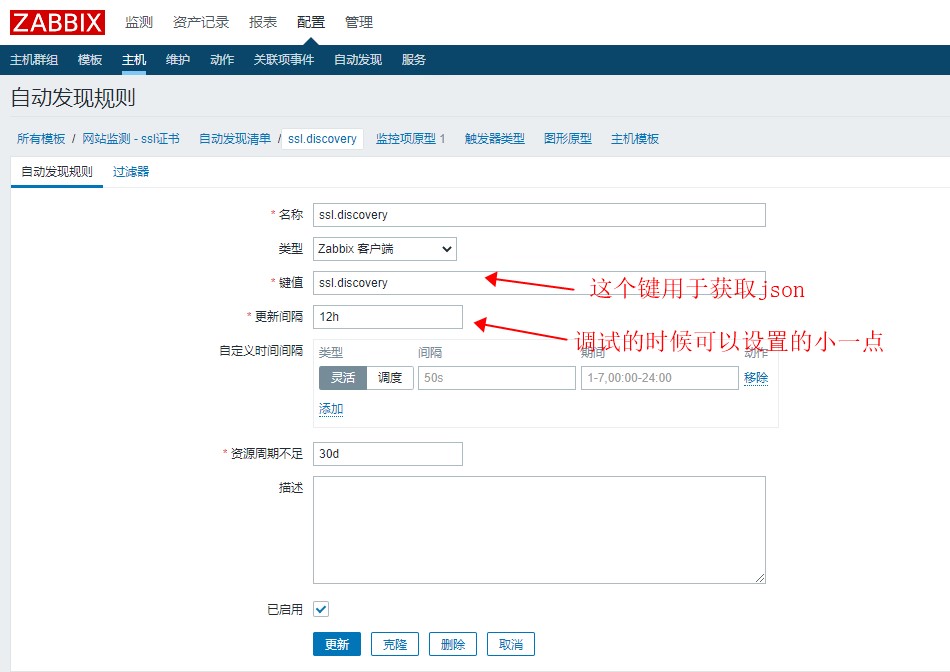

2、创建自动发现
选择模板 –> 点击’自动发现' –> ‘创建发现规则’

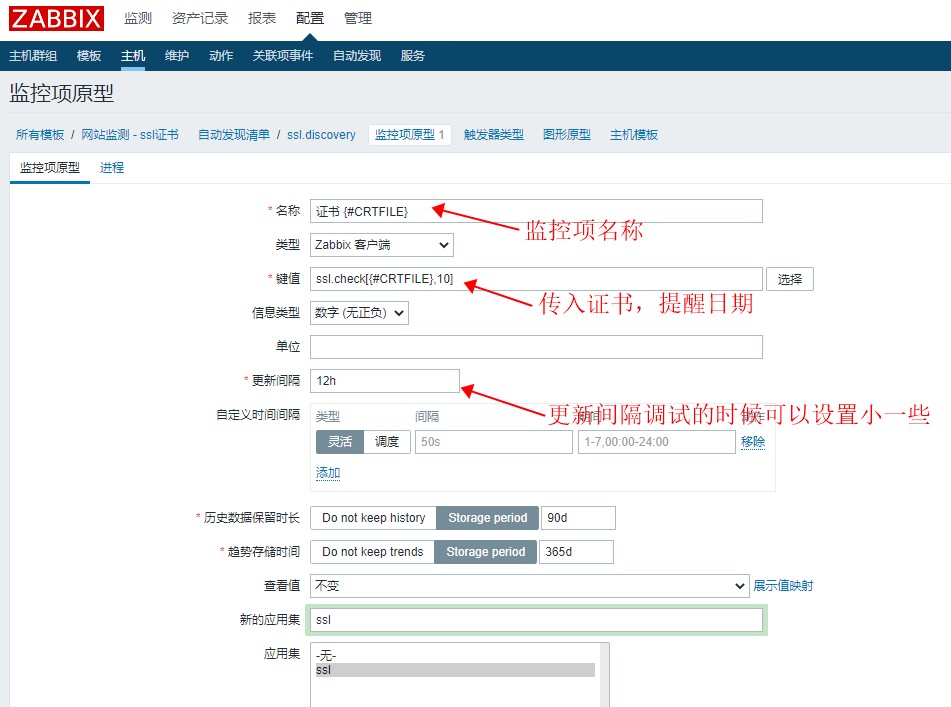

3、创建监控项原型
在自动发现规则下 –> 点击 ‘监控项原型’ –> ‘创建监控项原型’

4、创建触发器
在自动发现规则下 –> 点击 ‘触发器类型’ –> ‘创建触发器原型’

5、主机添加模板
点击 ‘配置’ –> 选择’主机' –> 点击’模板' –> 选择’模板’添加

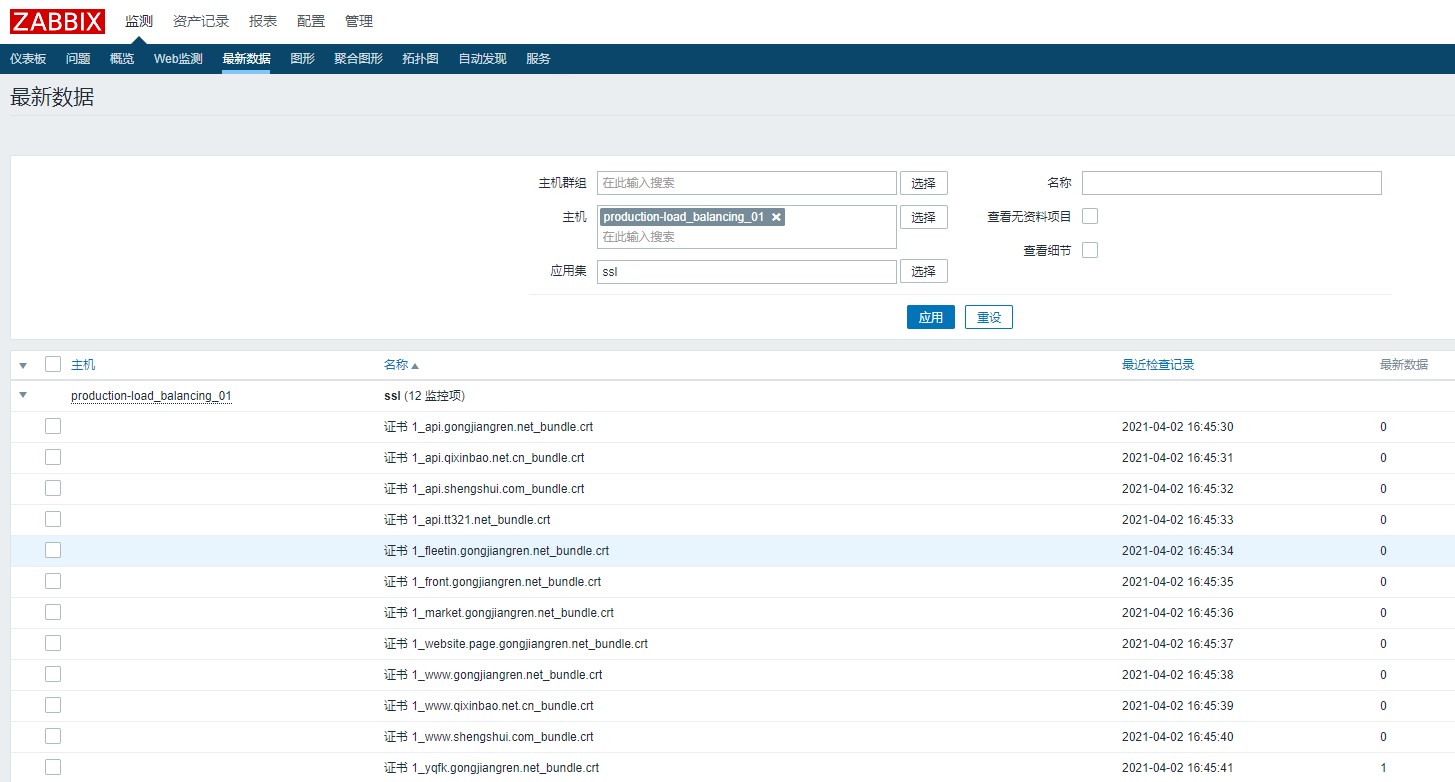

6、验证数据
点击 ‘监测’ –> ‘最新数据’ –> 选择’主机’与’应用集' –> ‘应用’

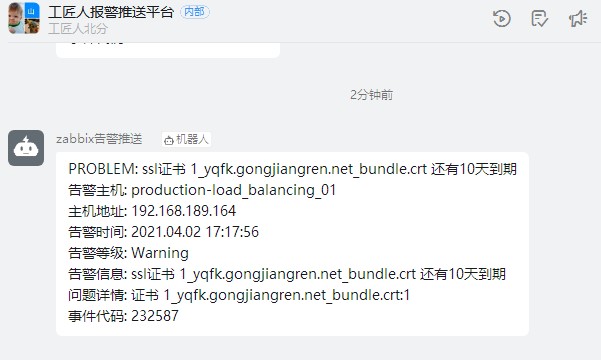

7、报警信息

参考文档:
[1] SSL证书到期时间监控提醒工具+脚本推荐
[2] 监控域名HTTPS证书过期时间
[3] 查看域名https证书到期时间
[4] Shell日期时间和时间戳的转换
