Zabbix 监控 supervisorctl

 ·  ☕ 1 min read

更新记录

时间 内容
2021-08-06 初稿

软件版本

soft Version
zabbix server 4.0.32
zabbix agent 4.0.29

监控脚本

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
➜  vim /etc/zabbix/scripts/supervisor.sh
#!/bin/bash

# Describe:     monitor supervisorctl status
# Create Date: 2021-08-06
# Create Time:  17:06
# Update Date:
# Update Time:
# Author:       MiaoCunFa
# Version:      v0.0.1

#===================================================================

file=/etc/zabbix/scripts/supervisor.txt

# 值校验
if [ "$1" == "" ];
then
    Usage
    exit 0
fi

function Usage(){
    echo "Usage: supervisor.sh [programm]"
}

#===================================================================

sudo supervisorctl status > $file

CMD=$(grep "$1" $file|awk '{print $2}')

if [ "$CMD" == "RUNNING" ];
then
    echo "1"
else
    echo "0"
fi

# 执行权限
➜  chmod u+x supervisor.sh
➜  touch supervisor.txt
➜  chown zabbix:zabbix supervisor*

# 修改 zabbix conf
➜  vim /etc/zabbix/zabbix_agentd.d/supervisor.conf
UserParameter=py_status[*], /bin/bash /etc/zabbix/scripts/supervisor.sh $1

# 修改 sudo 权限
➜  vim /etc/sudoers
zabbix  ALL=NOPASSWD:/usr/bin/supervisorctl

# 重启 zabbix agent 服务
➜  systemctl restart zabbix-agent

测试验证

1
2
➜  zabbix_get -s 192.168.189.193 -k py_status[prod_auto]
1

Zabbix UI

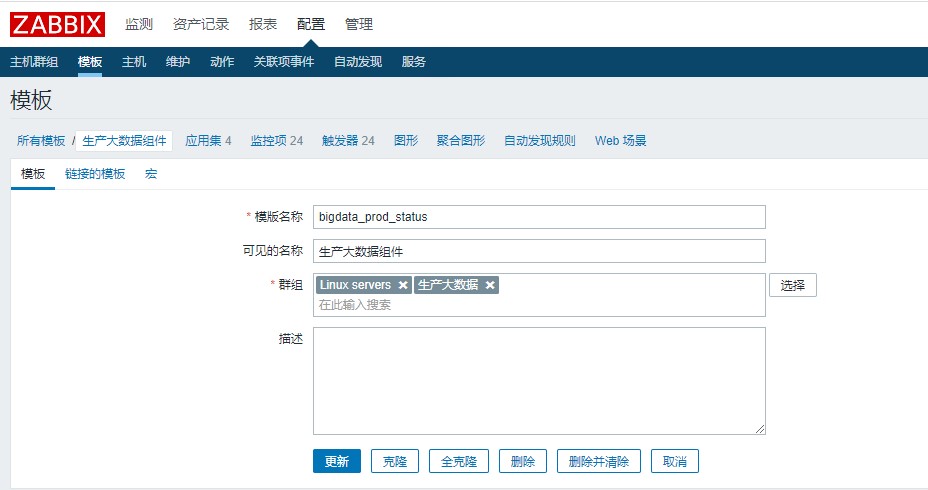

①创建模板

点击 ‘配置’ –> ‘模板’ –> ‘创建模板’

创建模板

②创建应用集 big-prod-node1

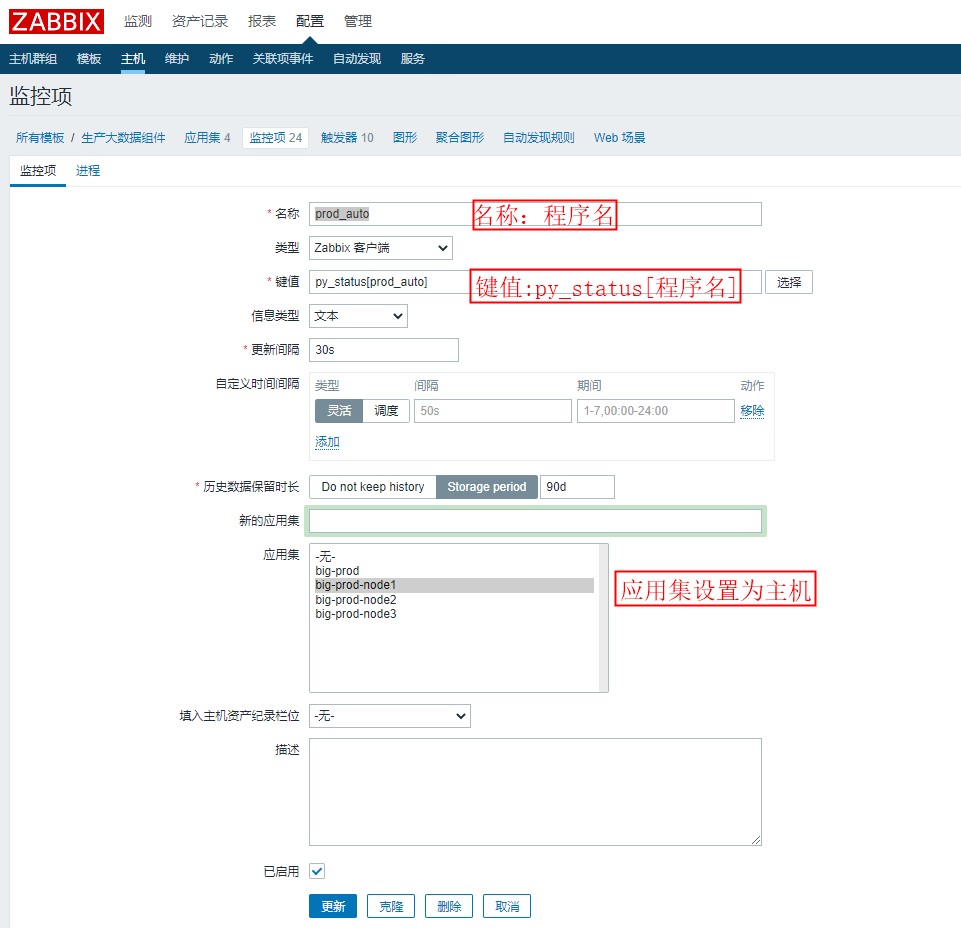

③创建监控项

在模板下 –> 点击 ‘监控项’ –> ‘创建监控项’

创建监控项

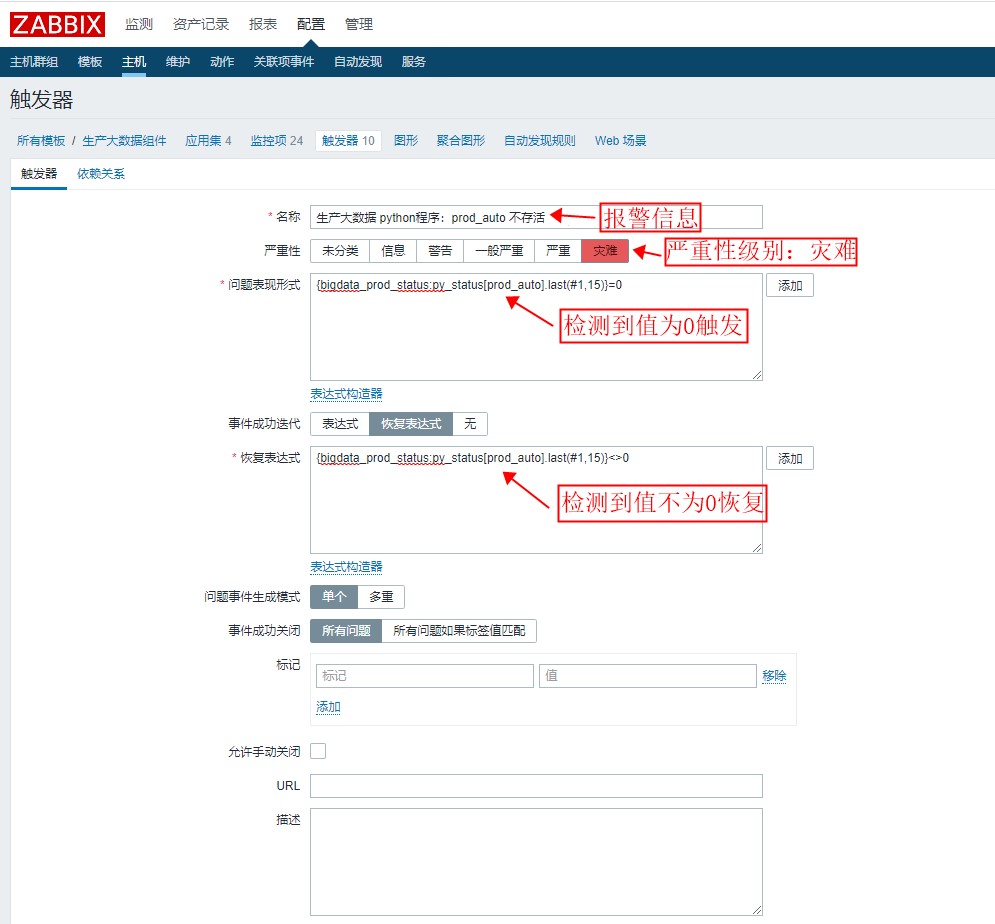

④创建触发器

在模板下 –> 点击 ‘触发器’ –> ‘创建触发器’

创建触发器

Zabbix 验证

①监控项列表

监控项列表

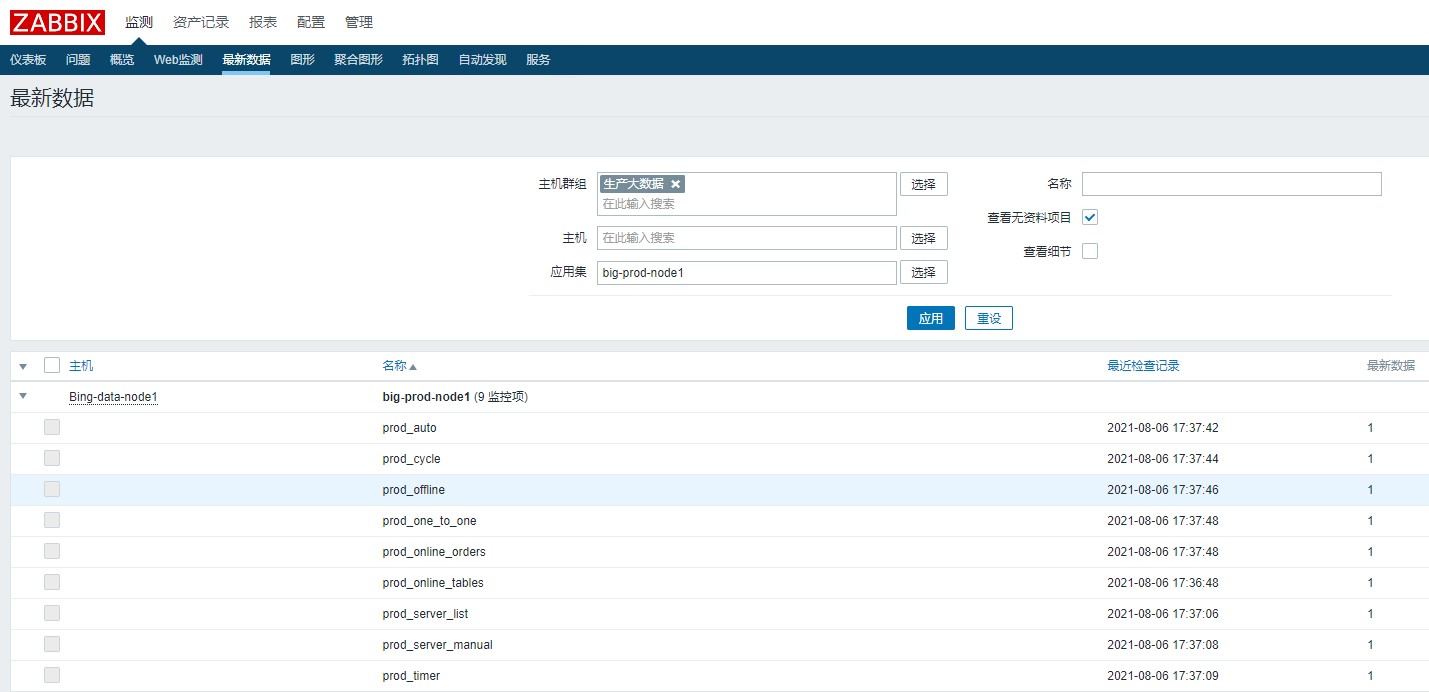

②最新数据

监控项列表
